Description

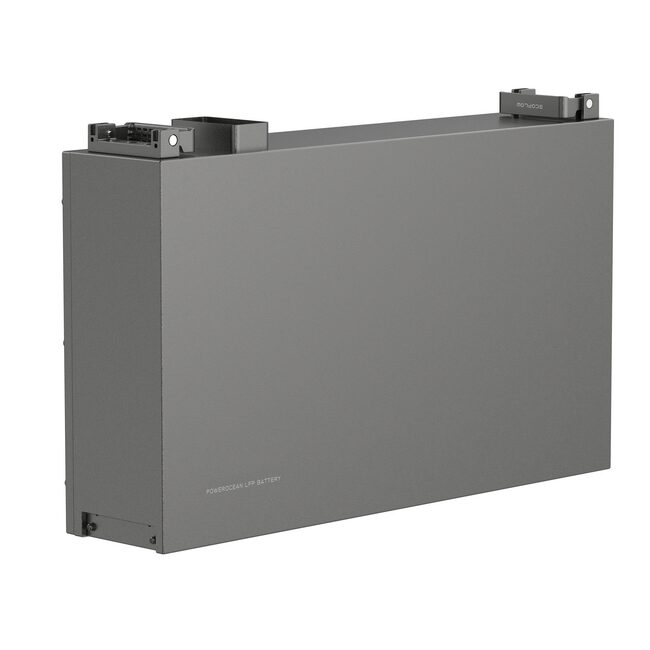

EcoFlow | PowerOcean | HV Battery Module | 5.12kWhr
r
The EcoFlow 4895251607063 is an advanced lithium iron phosphate battery module, designed for use within the EcoFlow PowerOcean system. This battery offers a reliable and scalable solution for energy storage in residential and small-scale commercial applications. Thanks to the high nominal voltage and compatibility with high-voltage inverters, the module is suitable for both single-phase and three-phase installations. r
r
The integrated Battery Management System (BMS) continuously monitors cell status, temperature and safety. In addition, the module is equipped with an active fire prevention function and automatic heating, which ensures optimal performance, even at low temperatures. Thanks to the IP65 rating, the battery is resistant to dust and water, allowing for both indoor and outdoor installation. The housing is robust, maintenance-free and passively cooled, ensuring silent operation. r
r
With a lifespan of over 6,000 cycles and a 15-year manufacturer’s warranty, this battery is designed for long-term reliability. Multiple modules can be combined for a total capacity of up to 45kWh, making the system easily scalable.r
r
Technical specificationsr
r
- Capacity (nominal): 5.12kWhr
- Capacity (usable): approx. 4.8kWhr
- Nominal voltage: 800Vr
- Voltage range: 720–960Vr
- Max. charge/discharge current: 100Ar
- Power: 5–6kW continuousr
- IP65r
- Dimensions: 680 × 183 × 452mmr
- Weight: 59.2kgr
- Lifespan: 6,000 cycles to 70% capacityr
- Warranty: 15 years
Documents
- 📄 AA) Datasheet Ecoflow PowerOcean Battery
- 📄 AB) User Manual EcoFlow PowerOcean LFP Battery EN
- 📄 ADZ) CE-Certificate EcoFlow PowerOcean LFP Battery 20250213 EN
- 📄 ADZ) Certificate EN 13849-1 EcoFlow PowerOcean LFP Battery EN
- 📄 ADZ) Certificate VDE-2510-50 EcoFlow PowerOcean LFP Battery EN
- 📄 BB) Handleiding EcoFlow PowerOcean-LFP-accu NL
- 📄 CB) Benutzerhandbuch EcoFlow PowerOcean LFP Battery DE
