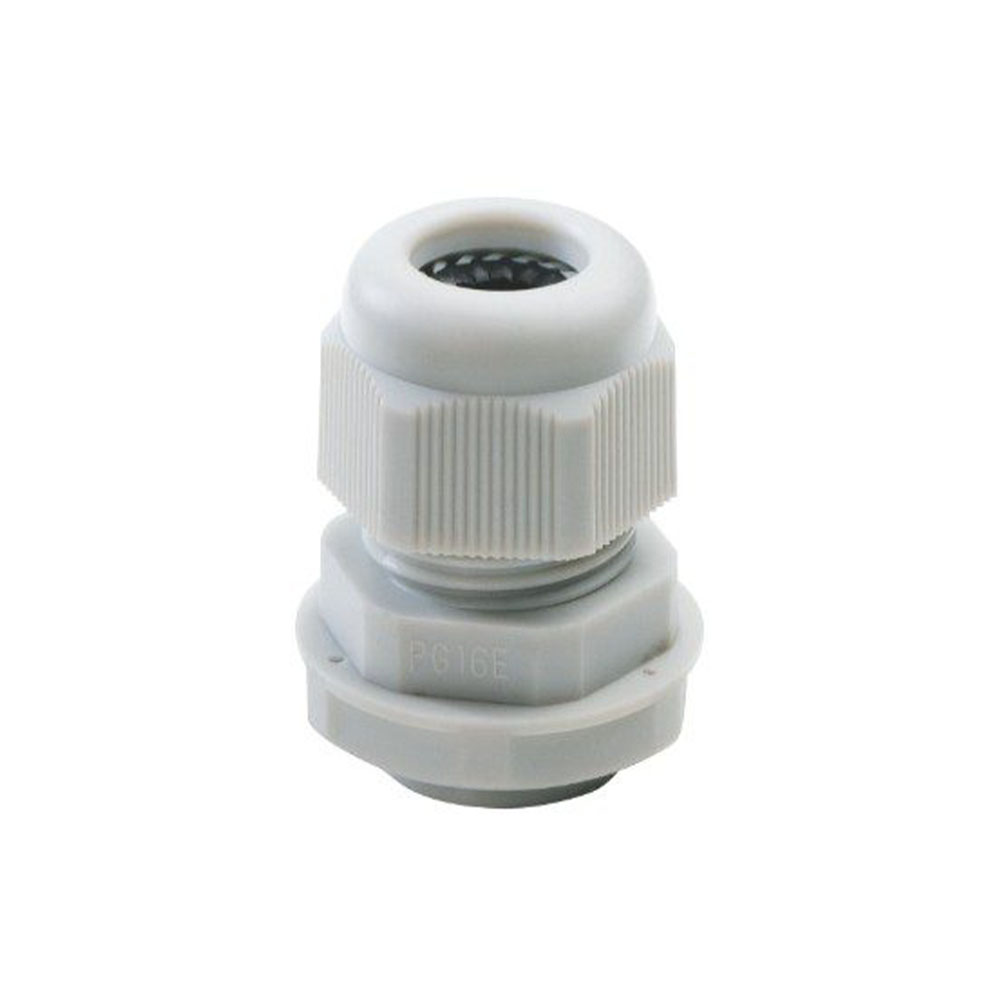

Gewiss nylon cable gland PG21

Gewiss nylon cable gland PG21 is a professional technical component designed for electrical installation in various contexts, including residential and industrial environments.

Main technical features:

&]:mt-2 list-decimal space-y-2 pl-8″>
1. Material and Construction

&]:mt-2 list-disc space-y-2 pl-8″>
• Made entirely of Nylon
• Standard gray color RAL 7035
• Designed to guarantee a high degree of protection IP68, which ensures complete resistance to dust and impermeability under immersion conditions

&]:mt-2 list-decimal space-y-2 pl-8″ start=”2″>
1. Dimensional Specifications of the cable gland

&]:mt-2 list-disc space-y-2 pl-8″>
• Mounting hole diameter: 29 mm
• PG pitch: 21
• Suitable for cables with a diameter between 13 and 18 mm

&]:mt-2 list-decimal space-y-2 pl-8″ start=”3″>
1. Resistance and Performance

&]:mt-2 list-disc space-y-2 pl-8″>
• Operating temperature: from -25°C to +65°C
• Glow wire resistance up to 650°C
