Description

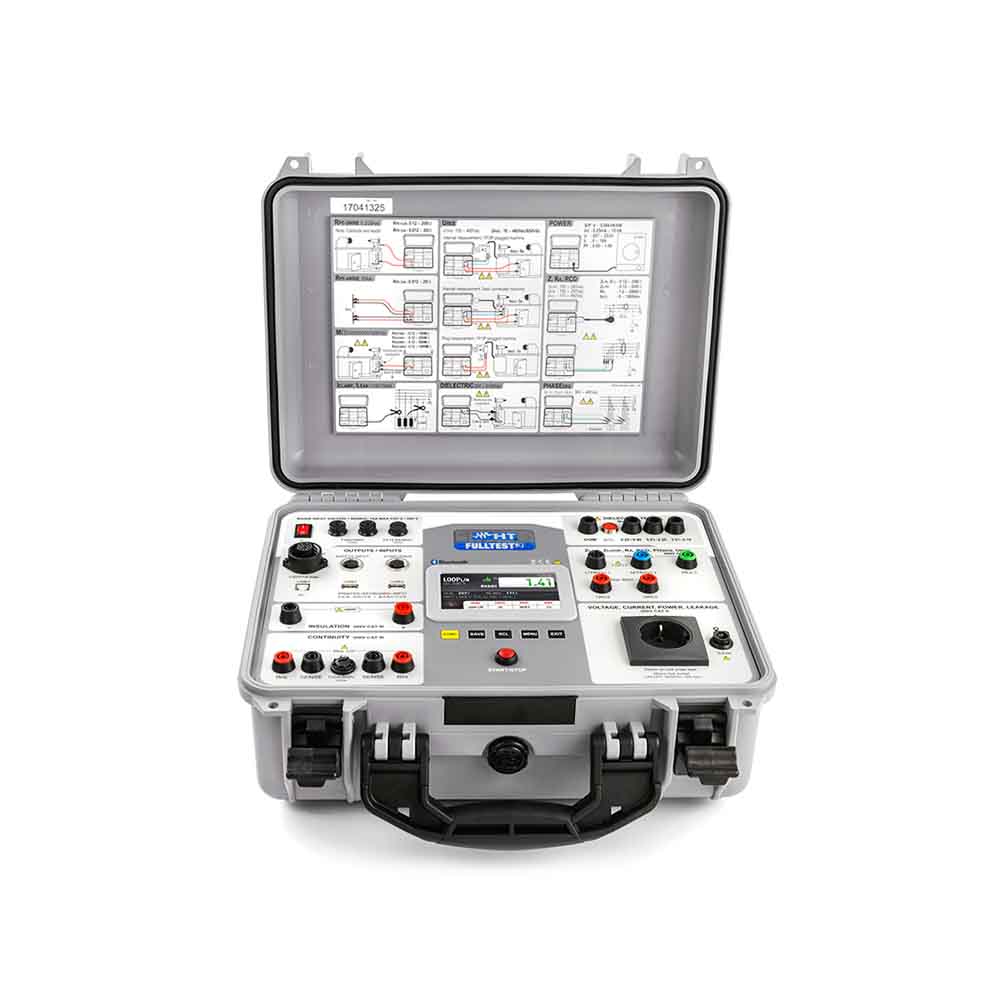

HT FULLTEST3 is a multifunction instrument for electrical safety testing.
Using this single instrument, it is possible to conduct a series of fundamental tests to ensure the safety of electrical systems:
- Electrical strength test with test voltage up to 5100V in accordance with the new standard IEC/EN61439-1-2
- Protection against indirect contact test in accordance with the requirements of IEC/EN 60204-1
- Continuity of protective conductors (test current 200mA .. 25A)
- Differential circuit breaker (RCD AC, A, B) trip test up to 1A
- Total Earth Resistance measurement
- Test of coordination of magnetic-thermal circuit breakers (MCB curves B, C, D, K) and fuses (gG, aM)
- Insulation Resistance with test voltage up to 1000V
- Residual voltage test on capacitive elements
- Leakage current measurement at the socket and via clamp (HT96U, optional)
- Functional test via socket (power, current)
- Phase sequence.
The instrument also features a touch-screen color display and 3 USB ports for PC connection, USB pen drives, USB printers and potential barcode readers.
Included in the package:
- HT FULLTEST3
- 2317-IECV-200-R Test cable
- 2310-IECIV-200-V 2 Green and Blue test cables
- 2310-IECIV-200-N Test cable
- 404-IECN Measuring probe with retractable protective cap
- C2033X 3-terminal cable with Italian plug
- 5004-IECN Crocodile clip for cables with 4mm banana plug
- FT3BRSN Soft bag for accessories
- FT3HVPRB1 1 banana-crocodile cable + 1 banana-probe cable
- C2007 + Downloadable Software
- User manual and Quick start guide
- ISO9000 Calibration Certificate
