Description

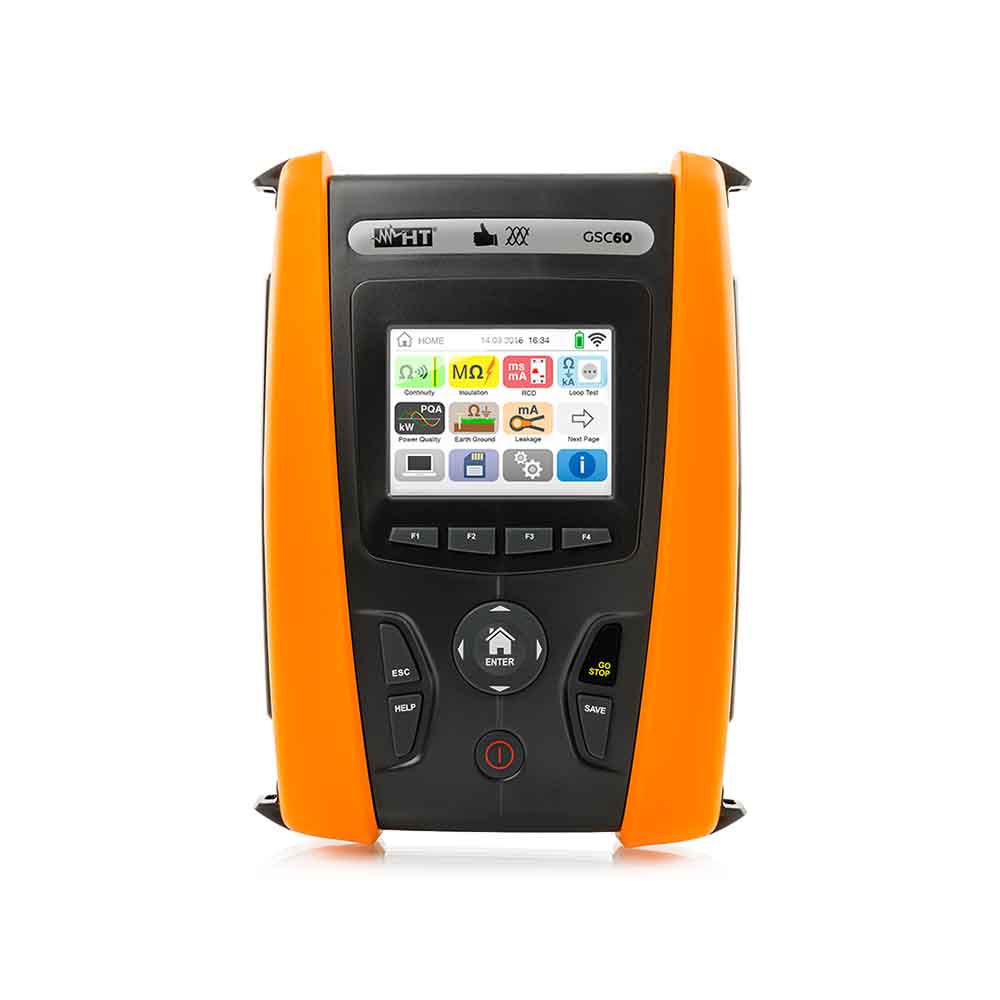

HT GSC60 is a multifunction instrument for electrical safety verification and network analysis. Through this single instrument, it is possible to conduct a series of fundamental checks to ensure the safety of electrical systems:
Through this single instrument, it is possible to conduct a series of fundamental checks to ensure the safety of electrical systems:
- Measurement of earth resistance is performed with precision thanks to the 2 or 3-point volt-ammeter method, suitable for TT, TN, and IT systems. Furthermore, soil resistivity can be evaluated using the 4-terminal Wenner method, providing crucial information for system design and maintenance.
- Type A, AC, and B differential tests, with a test current up to 10A, allow for verification of the effectiveness of differential protection devices, ensuring effective protection against electrical faults.
- Measurement of insulation resistance up to 1000V is equally important for identifying potential insulation defects in systems and preventing dangerous situations.
- Continuity of protective conductors is tested with a 200mA test current, ensuring they can provide a safe path for fault current dissipation.
- Verification of magnetic-thermal circuit breakers, fuses, and cable sizing through the Advanced Loop ensures that electrical equipment is adequately protected.
- Measurement of voltage drop on the line
- Verification of phase sequence
- Time recording of leakage currents
- Environmental parameters via external probes.
These measurements and verifications provided by a multifunction instrument offer a comprehensive overview of the electrical safety of systems, enabling timely interventions to ensure safe and reliable operation in compliance with current regulations.
Finally, via the integrated WI-FI in the HT GSC60 instrument, it is possible to connect to the HTANALYSIS APP, from which you can consult the measurements taken, upload them to HTCloud, or send them via email.
Included in the package:
- HTFLEX33E Flex clamp for AC current up to 3000A, 174mm diameter, 4 pieces
- C2033X 3-terminal cable with Shuko plug
- UNIVERSALKITG3 Set of 4 cables, 4 crocodiles, and 3 test probes
- KITTERRNE Bag with 4 cables + 4 metal probes
- PR400 Remote probe for test activation
- PT400 Stylus for touch-screen
- BORSA2051 Carrying bag
- TOPVIEW2006 Management software + optical/USB cable C2006
- YABAT0003000 Rechargeable NiMH 1.2V AA battery, 6 pieces
- A0060 Power supply/Charger 100/230Vac – 15Vdc, 10W CAT IV
- C7051 Straight Shuko-Europlug power cable without ground 1.50m
- SP-5100 Set of sheaths for shoulder strap use of the instrument
- Quick start guide
- User manual on CD-ROM
- ISO9000 calibration certificate
