Description

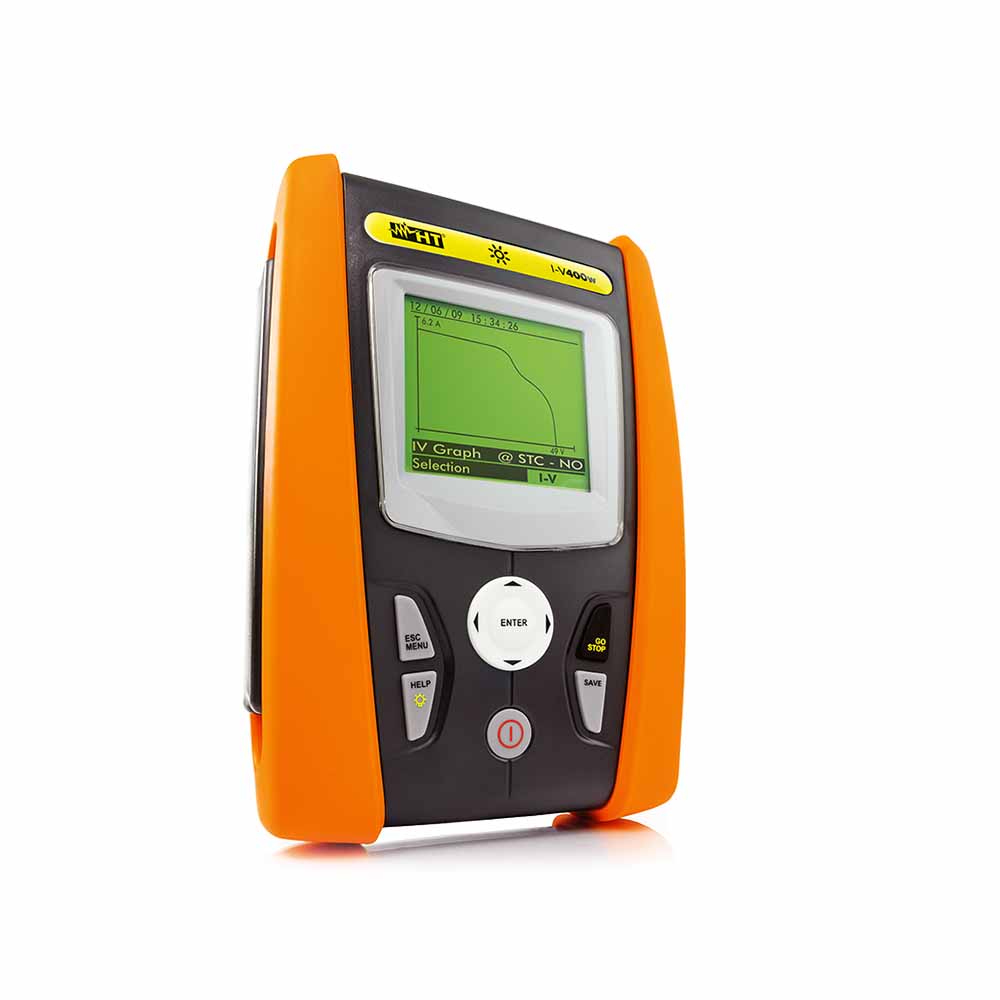

HT I-V400W is a multifunctional tool for the maintenance and troubleshooting of photovoltaic systems.
- I-V Curve 1000V/15A
- Measurement of the power of a module or string
- Measurement of open-circuit voltage and short-circuit current Voc/Isc
- Database of 30,000 selectable photovoltaic modules
HT I-V400w allows for field detection of the I-V Curve and the main characteristic parameters of both a single module and strings of modules for PV installations up to a maximum of 1000V and 15A.
For the I-V Curve measurement, HT I-V400w manages an internal module database that can be updated by the user at any time, and the comparison between the detected data and nominal data allows to immediately determine if the string or module meets the efficiency parameters declared by the manufacturer.
The I-V Curve detection can also be achieved by decentering the irradiance and temperature measurements using the optional SOLAR02 remote unit, utilizing the radio frequency (RF) connection with the master unit.
Also for HT I-V400w, the display of the IV Curve at the end of the test provides a very clear indication of whether or not it complies with the specifications declared by the panel manufacturer.
Finally, HT I-V400w can connect to a tablet via the HTANALYSIS application, allowing the technician to consult in real-time the data acquired from the measurements made in the field, without needing to use a computer in the office.
Included in the package:
- HT I-V400W Instrument for I-V curve verification 1000V/15A
- KITGSC4 Set of 4 x 4mm banana cables, 2m + 4 crocodiles
- KITPVMC4 Set of 2 banana adapters – MC4 Male/Female
- HT304K Reference cell for irradiance measurement.
- M304 Mechanical inclinometer
- VA500 Hard case for transport
- SP-0500 Hands-free kit
- TOPVIEW2006 Windows PC software + optical/USB
- User manual on CD-ROM
- Quick guide
- Batteries
- ISO9000 Calibration Certificate for I-V500w
- ISO9000 Calibration Certificate for HT304N
