Description

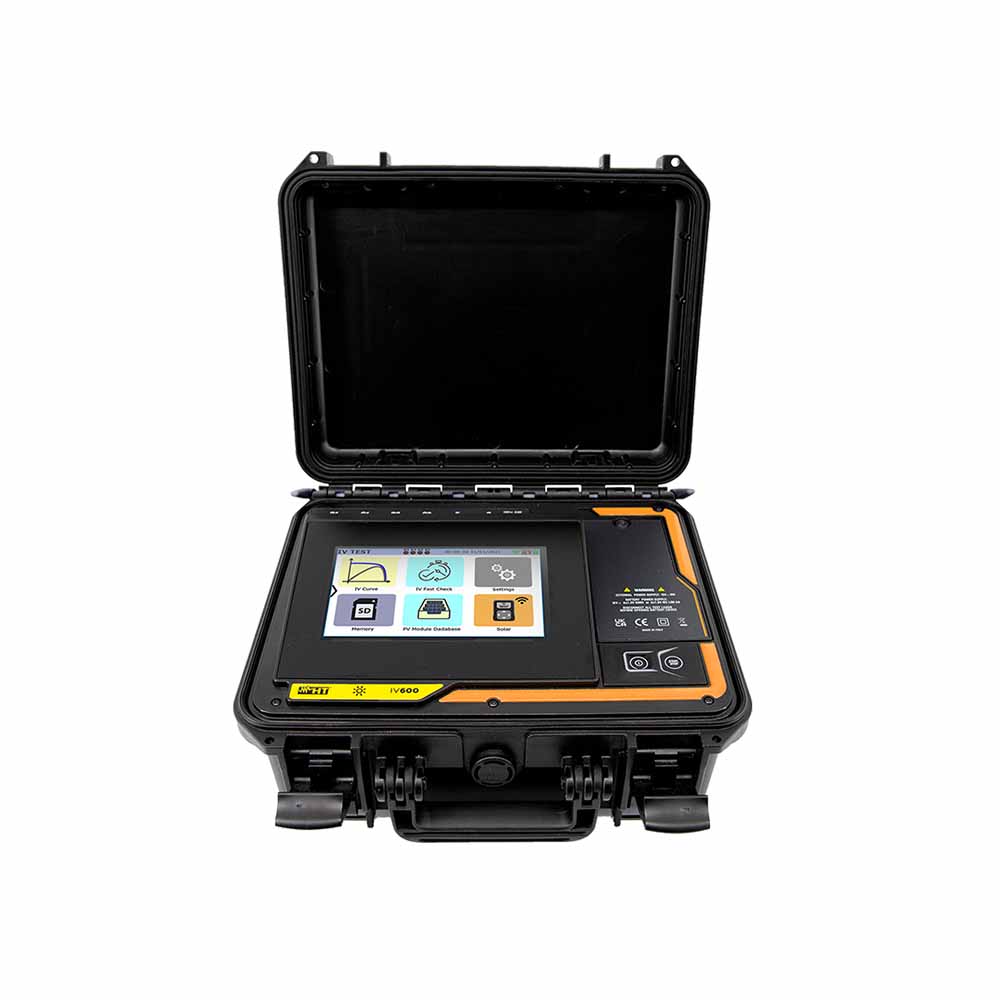

HT I-V600 allows for on-site detection of the I-V Curve and key characteristic parameters for both single modules and strings of modules up to a maximum of 1500V and 40A. The module type can be either Monofacial or Bifacial.
HT I-V600 manages an internal database of photovoltaic modules, which can be updated at any time via the HT AGORA’ software. By comparing the detected data with the nominal data, it allows for immediate determination of whether the string or module meets the efficiency parameters declared by the manufacturer.
By utilizing the remote unit SOLAR03, it is possible to acquire data on Irradiance (HT305) and Temperature (PT305) and send them via Bluetooth to the HT I-V600.
HT I-V600 integrates a display on which the IV Curve is shown, providing a very clear indication of compliance or non-compliance with the specifications declared by the panel manufacturer.
Finally, the internal battery recharges in real time using a highly advanced internal algorithm.
Included in the package:
- HT I-V600 Instrument for I-V curve verification 1500V/40A
- Shoulder strap
- M304
- YABAT0003000 Rechargeable battery
- A0061 External battery charger power supply with Italian plug cable
- HT professional backpack
- SOLAR03 Remote unit for measuring irradiance, temperature, and inclination of PV modules
- PT305 PT1000 probe for measuring cell temperature
- HT305 Reference cell for irradiance measurement
- KIT2PRO15 2 x set of 2 banana-banana cables 3 meters Red Black + 2 alligator clips Red Black
- KITPVMC4150 Set of 2 MC4 compatible adapters and 2 male 4mm bananas, 3m
- SP-2003 Shoulder strap for PRO case
- C2010 USB A – USB C connection cable
- 32 Gb Micro SD card
- Software downloadable online
- Quick guide and User Manual, Calibration Certificate
- SOLAR03 User Manual
