Description

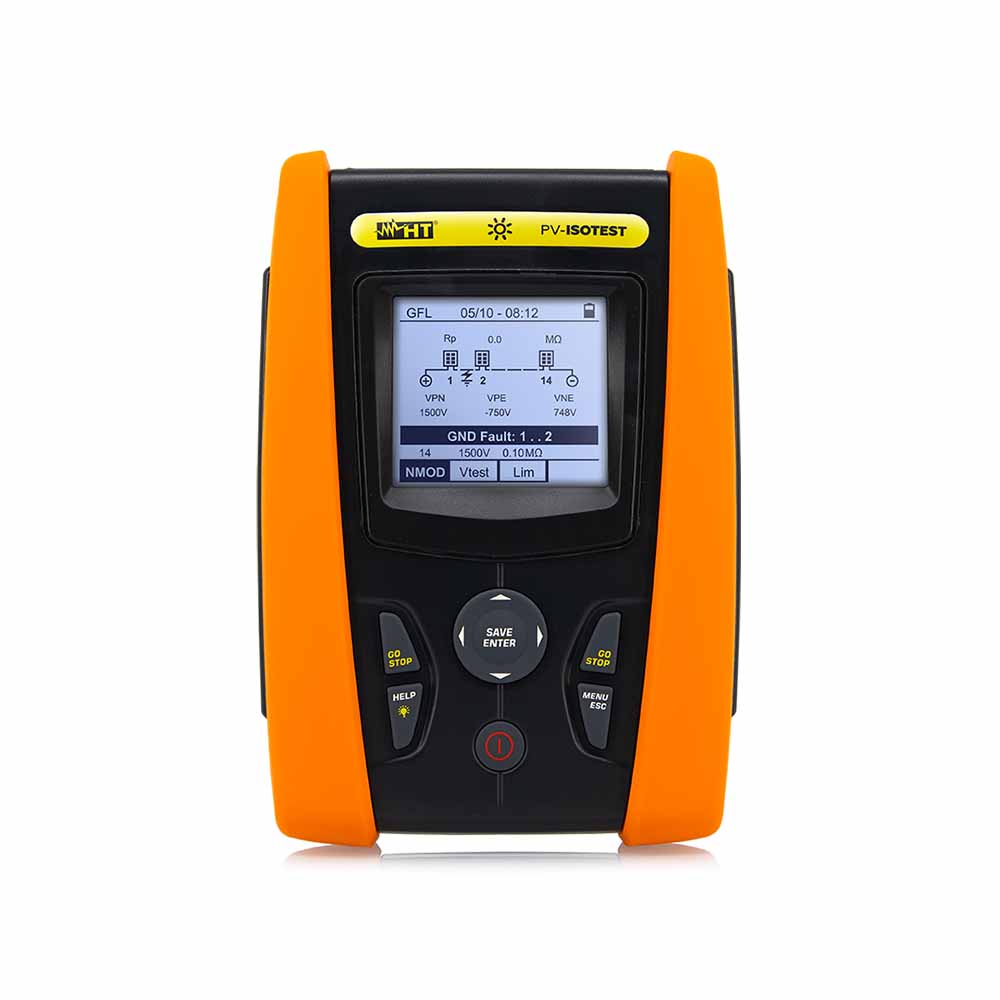

HT PV-ISOTEST is a multi-function tool for verifying electrical safety and fault finding in a photovoltaic system.
- Insulation measurement up to 1500VDC
- Faulty module localization via the new GFL function
- Continuity of protective conductors with 200mA
HT PV-ISOTEST represents a true innovation, as it is capable of performing insulation measurement of a module, a string, or an entire photovoltaic field (IEC/EN62446) up to 1500V and without the need for an external switch to short-circuit the positive and negative terminals.
Furthermore, through the new GFL function, it provides the exact indication of the location of any single fault of poor insulation present on a string of the PV system, due, for example, to water infiltration or humidity.
Included in the package is:
- HT PV-ISOTEST Insulation meter for photovoltaic systems up to 1500V
- KITGSC4 Set of 4 banana plugs 4mm + 4 crocodiles
- KITPCMC4 Set of 2 adapters with single-wire connectors compatible with MC4
- VA507 Hard case for transport
- SP-5100 Set of straps for carrying the instrument over the shoulder
- TOPVIEW2006 Software for PC in Windows environment + optical/USB connection cable (order code: C2006)
- YAMUM0077HT0 User manual on CD-ROM
- YAMUM0076HT0 Quick start guide
- ISO calibration report
