Description

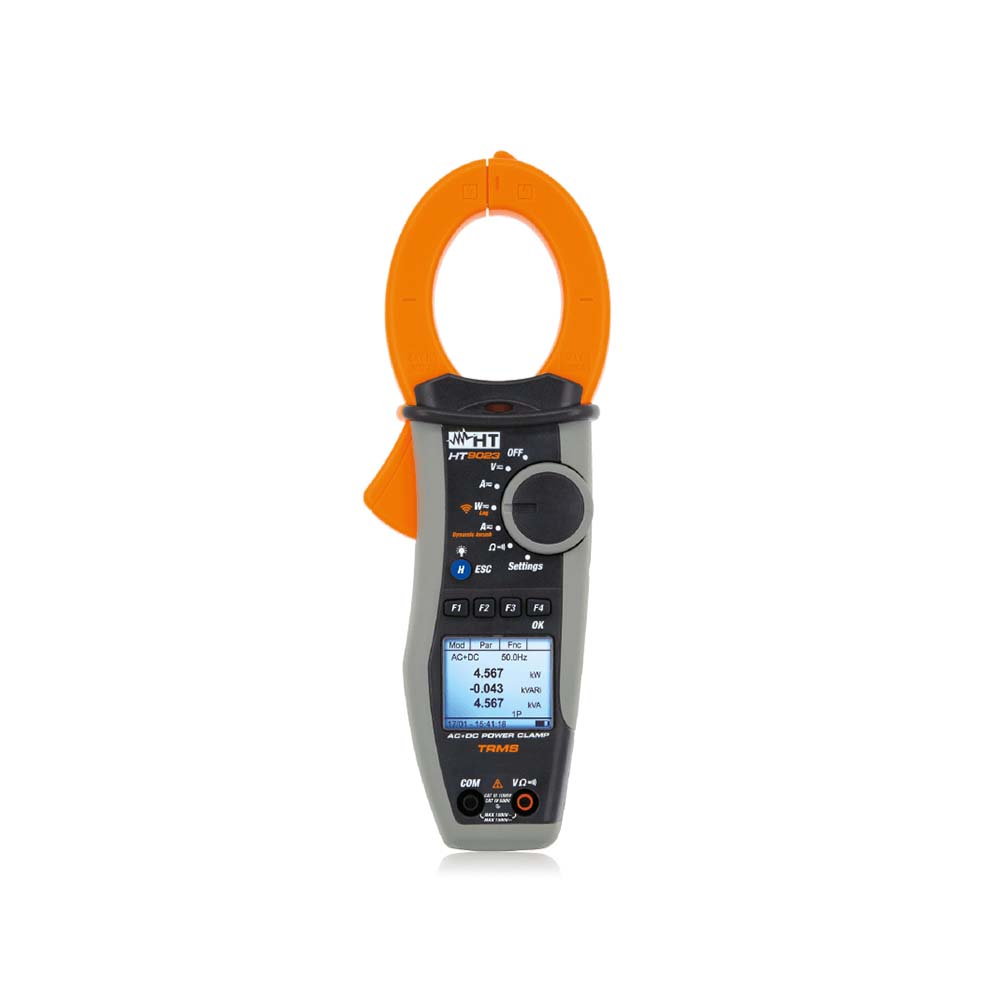

HT9023 Clamp Meter performs the following measurements:
- AC/DC and AC+DC current up to 1000A in TRMS
- DC voltage up to 1500V and AC voltage up to 1000V
- Network Analysis
- Cyclical phase direction with 1 terminal
- Motor starting current (Dynamic INRUSH)
- Resistance, Frequency
HT9023 is a device equipped with a sensor for non-contact AC voltage detection.
HT9023 allows for time-based recording of all measured electrical parameters with the possibility of data transfer via WiFI to Android/iOS devices through the HTAnalysis app.
The instrument complies with IEC/EN61010-1 at CAT IV 600V and CAT III 1000V and is ideal for measurements in both civil and industrial environments.
The clamp meter features a large dot-matrix graphic display (128x128pxl) with Backlighting to facilitate reading even in poorly lit environments and has an auto-power-off function to conserve its internal battery.
Included in the package:
- HT9023 Clamp Meter
- 4324-2 Professional test leads pair red/black 2/4 mm at 90°
- YAAMK0001HT0 Pair of crocodile clips red/black 4mm
- YABRS000NN0 Carrying bag
- 2XAAA Battery
- User Manual and Quick Guide
- Calibration Certificate
