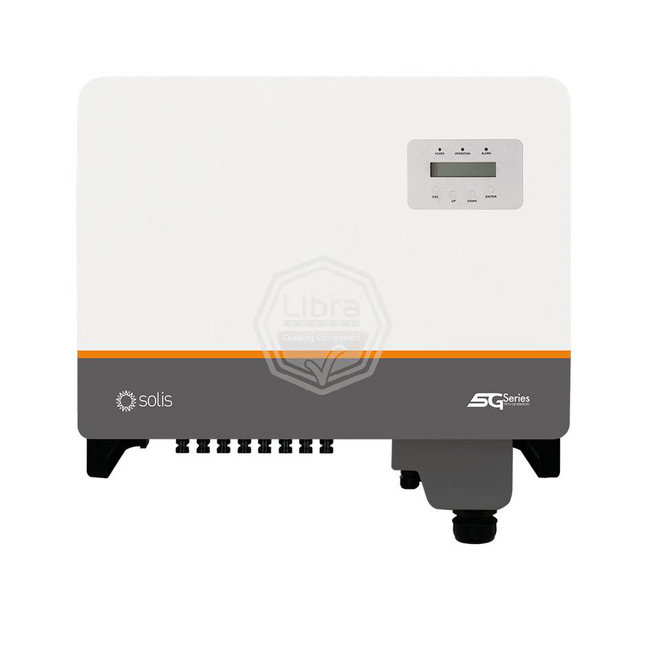

Solis 25K-S5
The Solis 25K-S5 three phase inverter is the perfect solution for both residential and small commercial and industrial PV systems. This inverter has a maximum input power of 39kW, a rated output power of 25K and a maximum efficiency of 98.8%. Three MPP trackers ensure a highly accurate tracking algorithm. The Solis 25K-S5 features high-frequency switching technology, a wide voltage range and a low start-up voltage. The three phase connection distributes the power over three cables. This inverter has integrated arc detection to prevent the risk of fires, and automatic voltage stabilisation technology protects against mains power fluctuations. The Solis 25K-S5 is part of the S5 series and comes with a 5-year manufacturer’s warranty.
Solis 25K-S5 product data
- Max. input power 37.5kW
- Max. input current 26A
- Max. output current 41.8A
- Max. efficiency 98.8%
- Three phase
- 3 MPPT 6 IN
- Integrated AFCI
- RS485 (Optional: WIFI/LAN/GPRS with Data logger).
- LCD display
- Weight 45kg
- Dimensions 647 x 629 x 252mm
Documents
- 📄 AB) Manual Solis-xxK-S5
- 📄 AC) Solis Warranty Europe 20250701-2 EN
- 📄 AD1) EN50549-1 Certificaat Solis (25-40)K-5G-DC (S5-GCxxK)
- 📄 AD2) EN50549-2 Certificaat Solis (25-40)K-5G-DC (S5-GCxxK)
- 📄 AD3) CE-certificate Solis (25-40)K-5G-DC (S5-GCxxK)
- 📄 AD3) CE-certificate Solis-(25-50)K-5G_S5-GC(25-50)K
- 📄 AE1) 6mA verklaring Solis
- 📄 BA) Datasheet Solis-25K-S5 NL
- 📄 BF) Certificaat Homologatie Synergrid Solis 3P-S5 (25K-40K)
- 📄 CB) Handbuchen Solis (25-40)K-5G-DC (S5-GCxxK)
- 📄 CD1) 4105 zertifikat Solis (25-40)K-5G-DC (S5-GCxxK)
