Solis | S6-EH3P4K-H-EU | Hybrid

Description

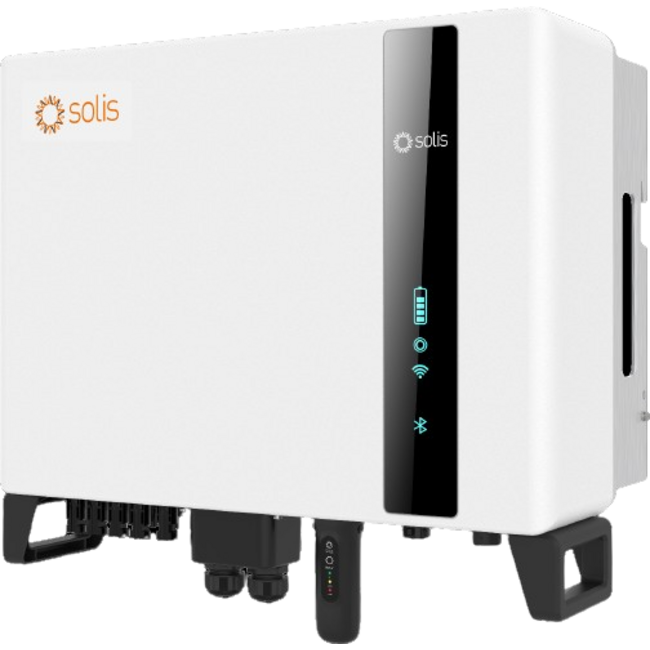

Solis-S6-EH3P4K-HEU Hybrid Inverter

This product offers surge load reduction, leakage current suppression technology, and a low failure rate. Additionally, this inverter delivers a maximum efficiency of 98.4%, features 2 MPPT and 2 DC inputs, and supports a maximum DC input current of 26A. The Solis-S6-EH3P4K-HEU comes with a 10-year warranty.

The Solis S6-EH3P4K-HEU series is compatible with the following batteries:

• BYD HVS 5.1–10.2 kWh
• BYD HVM 8.3–22.1 kWh

This model is listed on Synergrid but with a maximum apparent power of 4.4kVA.

Key Features of the Solis-S6-EH3P4K-HEU

• Max. DC primary power 8000W
• Max. output current 6.1A
• Three-phase
• 4kW
• 2 MPPT 2 IN
• WIFI/LAN
• High-voltage battery connection
• Energy meter and 3 CTs
• RS485
• IP66
• Dimensions 600 x 500 x 210mm
• 10-year warranty in the Netherlands, Belgium, France, Germany, Poland, and Italy

Documents

• 📄 AA) Datasheet Solis S6-EH3P4K-HEU EN
• 📄 AB) Manual Solis S6-EH3P(3-10)K-H-EU EN
• 📄 AC) Solis Warranty Europe 20240314 EN
• 📄 AC) Solis Warranty Europe 20250701-2 EN
• 📄 AD1) 50549-1, VDE V 0124-100 Certificate EH3P(3-10)K-H-EU
• 📄 AD3) CE-certificate Solis S6-EH3P(5-10)K-HEU
• 📄 ADZ) Certificate Low Voltage Directive 201435EU Solis S6-EH3P(3-10)K-H-EU
• 📄 ADZ) IEC 61000-3-x Certificate
• 📄 ADZ) IEC 61000-6-x EN 55011 Certificate
• 📄 AE1) 6mA declaration Solis
• 📄 AE2) Battery Compatibility Solis S6-EH3P(3-10)K-HEU V3.2 202412
• 📄 BB) Handleiding S6-EH3P(3-10)K-H V1.1 NL
• 📄 BB) Info Back up NL
• 📄 BF) Certificaat Homologatie Synergrid Solis S6-EH3P(3-10)K-H-EU
• 📄 CB) Handbuchen S6-EH3P(3-10)K-HEU V1.8 20240820 DE
• 📄 CC) Solis Warranty Europe V1.5 20230417 DE
• 📄 CD1) VDE4105 VDE0124 Certificate Solis S6-EH3P(3-10)K-H-EU
• 📄 CD1) VDE4105 VDE0124 Certificate Solis S6-EH3P(3-10)K-H-EU DE
